Antonov AN-12
DESCRIPTION
Designed and built in the Ukraine, the Antonov AN-12 is a midsized turboprop freighter that can comfortably carry 20,000 kg (44,090 lbs) of freight in a hold with a volume of 80 cubic metres. This aircraft is ideal for medium range freight charters.

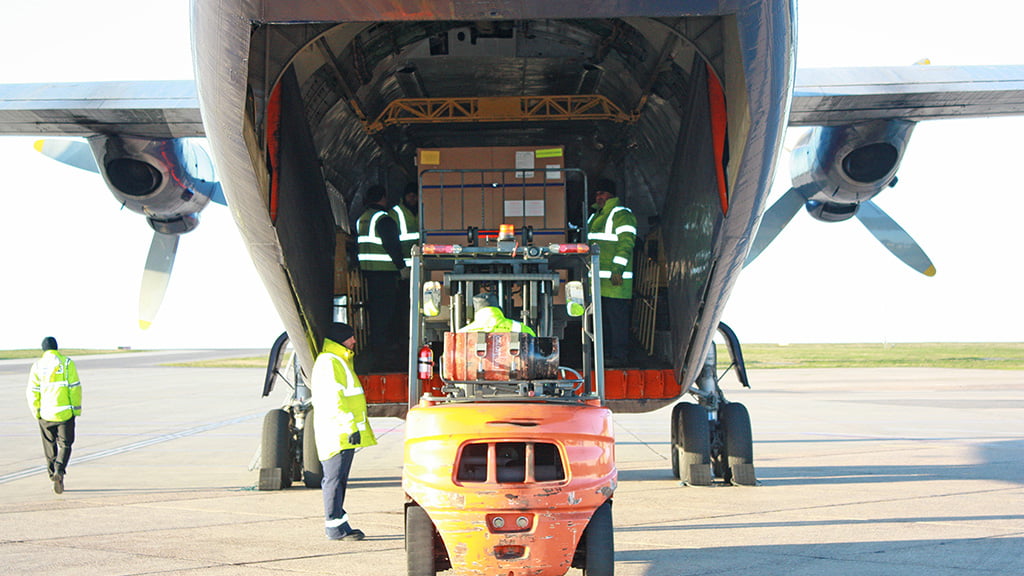

The Antonov AN12 is a rear loading aircraft capable of operating into remote airstrips with a maximum payload of 20 tonne. The aircraft has its own gantry requiring minimum loading and unloading equipment. The Antonov 12 is ideal for outsized cargo. Flightcrew consisting of two pilots, a flight engineer, radio operator and navigator.
CARGO SPECS
Maximum payload:
Maximum take off weight:

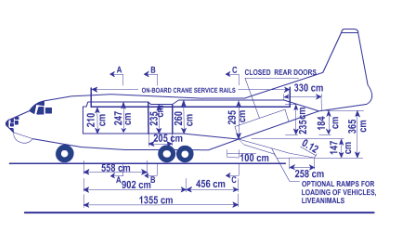

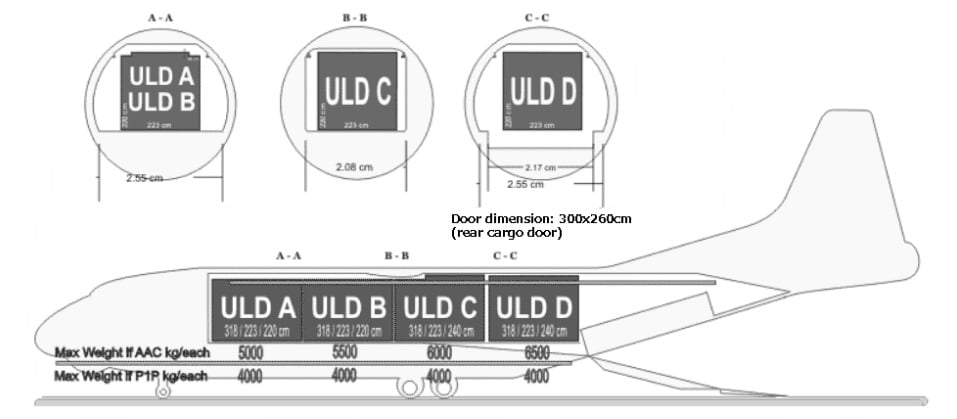

Cargo hold dimensions:
Cargo door size:
Noise category:
Roof mounted gantry hoist:
Internal winch:
Maximum hold volume:
Runway required:
20,000kgs
61000kgs
13.50 x 2.95 x 2.40 m
3.10 x 2.34 m
Stage 3
3000kgs max
5000kgs max
80 cubic m
1800 m
AIRCRAFT SPECS
Cruise speed:
Range full payload:
Cubic capacity:
Cabin length:
Cabin width:
440km/h / 240knots
1300km / 700nm
97.3m3/ 3426ft3
13.5m / 44.29ft
2.08m
